Perforated Wire Cut Brick
3 Hole Wire Cut Brick
- Size
- 229 × 110 × 70 mm
- Cores
- 3 round cores
Three round cores through the bed face. The everyday wire cut brick for exposed house fronts, boundary walls and general load-bearing masonry.
Golden Bricks Co.ManufacturerKakkar Majra, Ambala
Flat faces, square arrises and the same height course after course. We make 3 hole and 8 hole wire cut bricks and a pressed face brick, all at 229 × 110 × 70 mm, and send them by truck to sites across Haryana, Punjab, Chandigarh, Himachal and Delhi NCR.
The range
Three bricks, one size. The 3 hole and 8 hole bricks are extruded and cut on the wire; the face brick is pressed in a mould. Tap any brick for details or ask for the rate on WhatsApp.
Perforated Wire Cut Brick
Three round cores through the bed face. The everyday wire cut brick for exposed house fronts, boundary walls and general load-bearing masonry.

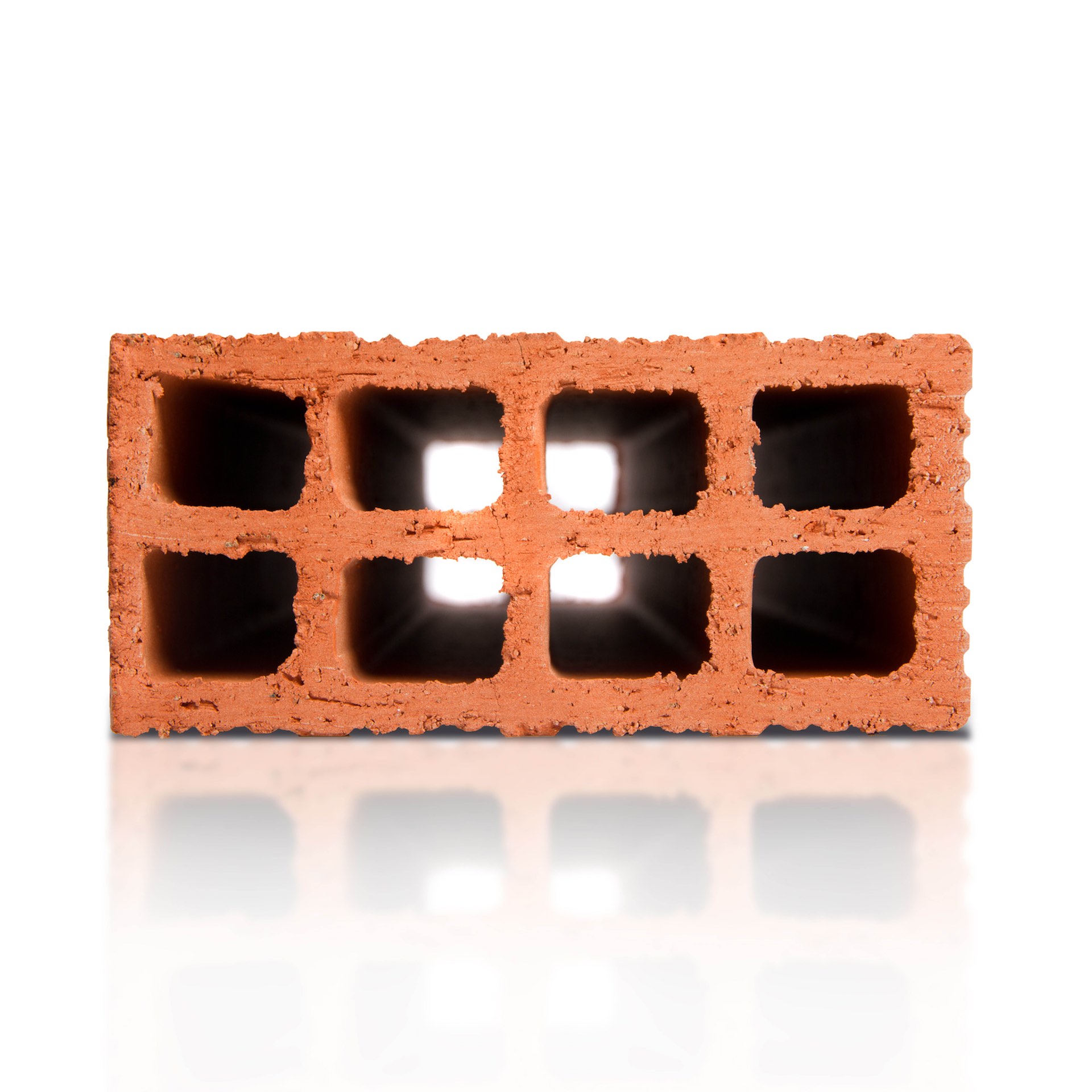

Perforated Wire Cut Brick
Eight cores take out more clay than the 3 hole brick. Used for partitions, parapets and upper floors, where a lighter wall eases the load on the slab.
Pressed Face Brick
Machine-pressed in a mould, with a frog on one bed face and sharp edges. A solid face brick for facades and feature walls, laid alongside wire cut bricks of the same size.
Not sure which brick? Ask for sample bricks or visit the kiln and pick from the stack.
Ask for samplesProcess
The name comes from one step in the middle. Everything before it decides the size; everything after it decides the strength and colour.
Clay is dug, left to weather, then mixed with water until it is stiff enough to hold a sharp edge.
An extruder forces the clay through a steel die as one long column. Pins inside the die form the 3 or 8 cores.
A frame of tight steel wires slices the moving column into bricks. Every brick gets the same height and flat cut faces.
The green bricks dry in the shade and then go into the kiln. Firing turns the clay red and hard.
Tool 01 Estimator
Enter the wall. The estimator takes out doors and windows, adds wastage and gives you the brick count, the weight of the wall on whatever carries it, and a quick check on whether the wall is too tall for its thickness.
Bricks to order
0
Height guide –
–
An estimate for ordering, not a structural design. Load uses wet mortar at 2,000 kg/m³ and leaves out plaster. Ask your engineer to confirm walls that carry a floor.
Get a delivered rate for this countTool 02 Bond switcher
The bond decides how the wall looks, how thick it is and how many bricks it eats. Switch the pattern to see a 2.4 m × 1.2 m panel drawn to scale with our 229 × 110 × 70 mm brick, with the count worked out for each bond.
Compare
Both are fired clay. The way the clay is shaped is what changes the wall.
| Wire cut brick | Table-moulded brick | |
|---|---|---|
| Shaping | Extruded through a die, sliced by wire | Clay thrown into a mould by hand or on a table |
| Size from brick to brick | Very regular | Varies a few millimetres |
| Faces and edges | Flat faces, square arrises | Softer edges, uneven faces |
| Cores or frog | 3 or 8 round cores, or solid | Usually a frog on one face |
| Bed joint | Even, 8–10 mm | Often thicker to make up for uneven bricks |
| Left unplastered | Yes, made for it | Possible, but looks rustic |
Projects
Fronts, towers, boundary walls and interiors from Golden Bricks Co. projects. Tap a photo to see it full size.
01 · ExteriorFour-storey institutional block in exposed red brick
02 · Exterior · BengaluruExposed brick facade with angled window boxes
03 · Exterior · Himachal PradeshMulti-storey building with a brick facade
04 · Exterior · AmbalaHouse front with brick towers and a brick boundary wall
05 · Exterior · PunjabVilla elevation with red brick between cream bands
06 · Interior · DelhiDining area with a full-height exposed brick wall
Delivery
Our kiln sits in Ambala district, between the tricity and the GT Road towns, so most sites in Haryana, Punjab, Himachal and NCR are a single truck run away. Pick your area for local notes.
FAQ
Still unsure? Call +91-90411-00702 and speak to the factory.
A wire cut brick is made by pushing stiff clay through a die as one long column and slicing that column into bricks with tight steel wires. The bricks are then dried and fired in the kiln. Because every brick comes from the same die, the faces are flat, the edges are straight and the size hardly varies.
Our standard brick is 229 × 110 × 70 mm. The 3 hole brick, the 8 hole brick and the pressed face brick all share this outer size, so they can be laid in the same wall.
For a 230 × 114 × 76 mm brick with 10 mm joints, a 4.5 inch wall takes about 48 bricks per m² (about 4.5 per sq ft) and a 9 inch wall in English bond about 95 per m² (about 8.8 per sq ft). Our 229 × 110 × 70 mm brick is a little lower, so it takes about 52 per m² (4.9 per sq ft) and 104 per m² (9.7 per sq ft). Add 3 to 5 percent for breakage and cuts.
The 3 hole brick has three round cores and is the usual choice for exposed walls and boundary walls. The 8 hole brick has eight smaller cores, so there is less clay in each brick and more trapped air. Builders use it for partitions and upper floors where a lighter wall helps.
Yes, well-fired wire cut bricks are used in load-bearing walls. The design strength has to come from your structural engineer and the test report of the batch. Ask us for the figures your engineer needs before you order.
The rate depends on the brick type, the quantity and the freight to your site. Send the quantity or the wall size on WhatsApp at +91 90411 00702 and we will reply with a delivered rate. Builders ordering in bulk get slab pricing.
No. The colour comes from the fired clay. Lay them with full joints, point the joints neatly and clean mortar off the face the same day. On exterior walls a clear, breathable water repellent is optional.
We dispatch from Village Kakkar Majra, Distt. Ambala to Chandigarh, Mohali, Panchkula, Ambala, Karnal, Panipat, Punjab, Himachal Pradesh, Delhi, Gurugram, Noida and Ghaziabad. Other cities are possible on request.
Quote
Tell us the brick, the quantity and the site. The rate comes back on WhatsApp with freight included, usually the same working day.
Buyer's guide
Wire cut bricks (often written wirecut bricks) are clay bricks shaped by extrusion and cut to length with wire. In North India the term usually means a red, kiln-fired brick with round cores, sold for walls that are left exposed or for masonry where a regular size saves mortar and plaster.
For a front, boundary wall or gate pillar that stays unplastered, choose the exposed wire cut bricks and ask for an even lot. For partitions and upper floors, the lighter 8 hole perforated brick keeps the load on the slab down. Everyday load-bearing masonry usually goes in 3 hole bricks.
A rate per brick only means something once you know how many you need. With our 229 × 110 × 70 mm brick and a 10 mm joint, a 4.5 inch wall takes about 52 bricks per m² and a 9 inch wall about 104. The estimator does the sum for your wall, including wastage.
The brick type, the order size, the freight to your site and whether unloading is included. Our price guide explains each one. Send the four details on WhatsApp and we quote a delivered rate.
We supply wire cut clay bricks in Chandigarh, Mohali, Panchkula, Ambala, Karnal, Panipat, Punjab, Himachal Pradesh, Delhi, Gurugram, Noida and Ghaziabad.
Journal
Both are fired clay. The difference is in how the clay is shaped, and that shows up in the wall: in the joints, the plaster and th...
Same outer size, same clay, same kiln. The number of cores is the only difference, and it decides where each brick belongs.
A rate per brick means little until you know what it includes. Here is what changes the price of wire cut bricks and what to tell...
